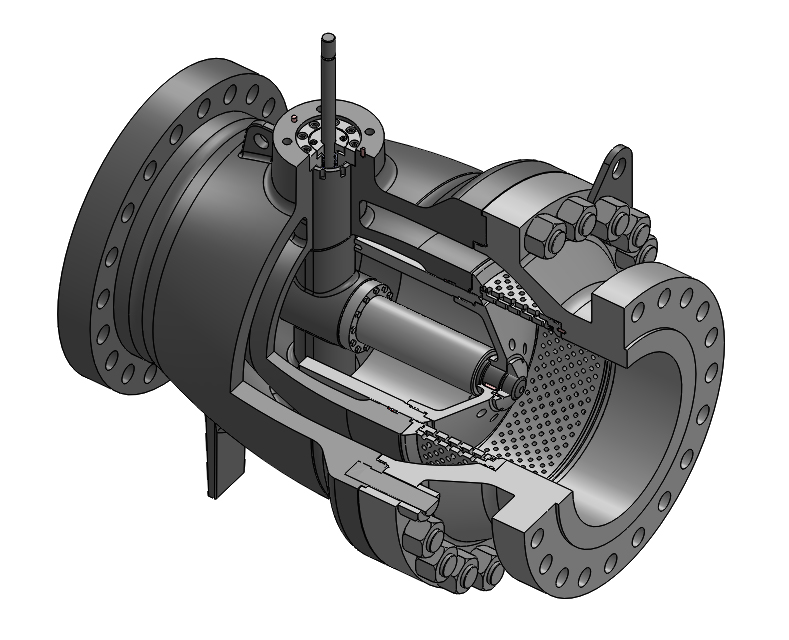

FGValvole Axial Flow Valve
Sizes
2” – 48”
Pressure Classes
ANSI 150 to 2500 / API 2000 to 15000
Request product information:
Main Applications
- Production /Treatment / Transmission and Transportation /Fire Pump
- Storage and distribution
- Anti surge / throttling service
- Choke and by-pass service
- Tank loading / venting and depressurization
Main features and options
- Valves for tight isolation service (ON-OFF)
- Valves for throttling service (FLOW CONTROL)
- Reduced valves stroke for quick closing time (SDV-HIPPS)
- Extended design life and low maintenance interventions
- Balanced-pressure disc design
- Extremely wide selection of materials for both body and internals including: carbon steel, low alloy steels, stainless steels, Duplex 22/25 cr, Ni-alloys and titanium.
Design options
- PLUG TYPE TRIM DESIGN for large flow rate and high pressure drop
- (SINGLE) CAGE TRIM DESIGN for gas, liquid and mixed phases service where high pressure drop is predicted and noise level shall be limited
- (MULTI) CAGE TRIM DESIGN for high pressure drops and large flow rate. Multi cage trim can be sized to suit any specific flow condition with different characteristics
